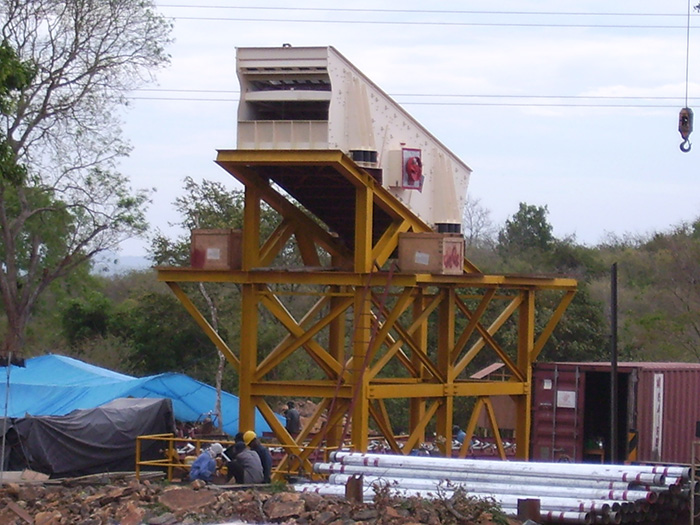

CMC VT-E series inclined screen applied the same mechanism of three -shaft horizontal screen. Therefore, it has same advantages as three shaft horizontal screen, like long service life of bearing due to no bending and no heat stretch on shaft.

Rugged design with Huck-bolted frames and integrated screen deck gives ever long service of frame structure. Sizes range from 4' x 10' to 8' x 24' and are available in single, two, three deck arrangements.


  • VT412
  • VT414
  • VT514
  • VT516
  • VT616
  • VT620
  • VT718
  • VT720
  • VT820
  • VT824
  • Remark: Each model has 2 or 3 decks.

    EX : VT620-2EC/VT616-3EC


  • Same vibrator mechanism as three -shaft horizontal screen.
  • Replaceable bearing seat design
  • Huck bolted frame structure
  • Integrated fabricated screen decks.
  • Oversized bearing
  • Equipped with rubber spring.


  • Rock crushing
  • Sand and gravel
  • Recycling
  • Wet screening
  • Mineral processing
  • Chemical production


  • Long bearing life due to advance vibrator without bending and heat stretch
  • Long frame life time due to Intergral screen deck; high strength side plates and hucking bolt frame design
  • Replaceable bearing seat design to easily change bearing and all parts at site
  • Amplitude can be adjustable through counterweight
  • Equipped with rubber spring to have smooth start and stop operation
  • Universal joint power transfer to minimize bearing loading
